The first electric pickup truck of 2.5-ton CNG fuel in FAW Brand
This model is the first small truck model of FAW Jiefang. It is a brand new product specially designed for modern logistics transportation and urban distribution fields. Its birth officially announces the completion of the full scene layout of the Liberation Heavy, Medium, and Minor Product Matrix.
This pickup truck series covers three major energy types: fuel, gas, and pure electric. In this issue, we will introduce CNG models in detail.
This model uses compressed natural gas (CNG) as the power source and is equipped with a single row cab structure, which meets the needs of cargo transportation while also ensuring driving comfort.
●Core parameters demonstrate hardcore strength

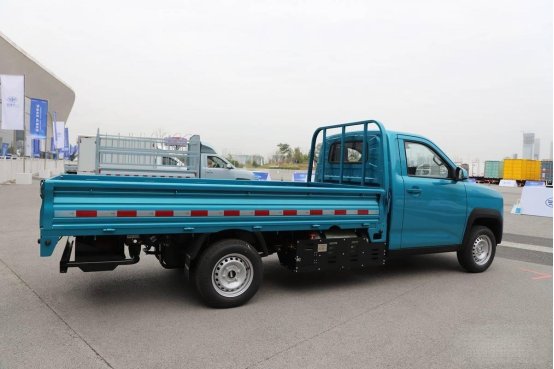

The CNG pickup truck adopts a 2.5-ton load capacity, and the body size has been lean optimized. The wheelbase of the entire vehicle is set at 3600mm, which achieves an ideal balance between flexibility and stability. The length of the tablet is 3.3 meters, the width is 1.78 meters, and the height of the railing is 360 millimeters, which can meet the transportation needs of various goods such as building materials, furniture, and agricultural products.
In terms of power system, it is equipped with the DAM16KL 1.6-liter naturally aspirated engine, which has been optimized for gas fuel combustion characteristics, achieving a good balance between power output and fuel economy. Matched with DAT18R five speed manual transmission, with clear gears, smooth shifting, and high transmission efficiency

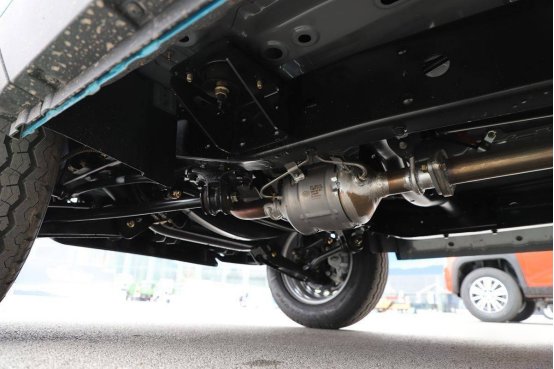

The chassis system adopts a 920 × 140 × 50 × 4mm high-strength straight through beam, combined with a 190mm diameter punch welded rear axle, with a load-bearing capacity far exceeding that of competitors in the same class, ensuring structural durability under heavy load conditions.

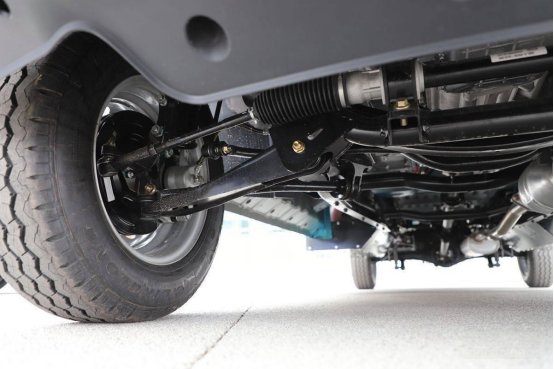

In terms of suspension configuration, it is equipped with independent suspension, which not only significantly improves driving comfort, but also effectively reduces cab vibration under frequent start stop conditions in the city, greatly reducing driver
fatigue.

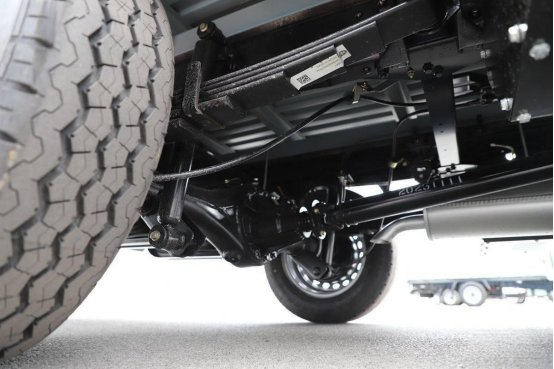

The rear axle adopts a 5-leaf spring steel plate suspension, which balances load-bearing capacity and driving stability. The application of 195/70R15 12 level vacuum tires can further reduce fuel consumption with a low rolling resistance formula while ensuring load-bearing capacity.
●Ultra low energy consumption reduces operating costs
Energy conservation and environmental protection are the core competitive advantages of this pickup truck. Through a comprehensive energy efficiency optimization strategy, the overall gas consumption of the vehicle has been reduced to an astonishing 8 cubic meters per 100 kilometers, significantly reducing fuel costs compared to diesel models of the same tonnage. This outstanding performance can help you recover your car purchase costs faster through the saved fuel costs.
● Strong power interprets adaptability to all road conditions
In response to the complex and ever-changing road environment, the Yuetu CNG cargo truck demonstrates excellent adaptability. The maximum power of the engine is 77 kW and the maximum torque is 134 N · m. Although the displacement is only 1.6 L, when combined with CNG fuel, it can make the anti knock performance even better.
Combined with a super large speed ratio, not only is the acceleration ability particularly outstanding at the beginning, but the uphill power is also very strong, especially suitable for high-altitude mountain road conditions
The ultra wide wheelbase design is another magic weapon to ensure driving stability, which is more stable than ordinary micro trucks and can bring a more stable driving texture.
●Conclusion
The new 2.5-ton CNG pickup truck demonstrates strong competitiveness in segmented markets such as urban distribution logistics, individual transportation, and urban-rural distribution with ultra-low gas consumption of 8 cubic meters per 100 kilometers, strong and stable power performance, and superior comfort configuration. It is not only a transportation tool, but also a wealth creation partner that helps users reduce costs, increase efficiency, and improve operational quality.
